Diablo-(This price applies to a non-standard product,please contact us via email for details.)
Version:Diablo
Quantity:
Before ordering:
Please review the order confirmation email from hello@directdrivetech.com, along with the refund policy and warranty terms. Opened, modified, or used development-kit items may have return restrictions unless there is a product quality issue.
FAQ
DIABLO robot questions
DIABLO is the Direct Drive Tech self-balancing wheeled-leg robot. These answers refer to the physical robotics platform.
What is the DIABLO robot by Direct Drive Tech?
DIABLO is a self-balancing wheeled-leg robot built by Direct Drive Tech, with direct-drive joints and an open SDK for robot development. It is distinct from unrelated games or fictional characters named Diablo.
Where are the official DIABLO SDK and user manual?
The DIABLO tutorials page links to the user manual, robot tutorial and SDK documentation.
What should I confirm before ordering DIABLO?
This listing is marked as a non-standard product. Contact Direct Drive Tech to confirm configuration, price, availability and delivery before ordering.
Where can I compare DIABLO with D1 and TITA?
Use the robot collection to compare the platforms, then check each model's documentation for your development requirements.
DIABLO ROBOT DEVELOPMENT PLATFORM
Direct-Drive Self-Balancing Wheeled-Leg Robot for Robotics Development
Diablo is a self-balancing wheeled-leg robot that combines efficient two-wheel mobility with leg-based height and posture control. With direct-drive robot joints, an open SDK, and expandable hardware interfaces, it gives research teams, educators, and system integrators a ready platform for robotics research, inspection, mapping, delivery, and autonomous mobility prototypes.
Why choose Diablo?
- Combine wheeled efficiency with legged posture and terrain adaptability
- Responsive motion from six M1502D direct-drive robot joints
- Standing, squatting, and creeping modes for different tasks and payloads
- Open hardware layout for adding LiDAR, GPS, collision-avoidance modules, and custom payloads
Built for real robotics projects
- Robotics research and autonomous mobility development
- Balance control, SLAM, sensor-fusion, and locomotion experiments
- Inspection, patrol, and mapping prototype development
- Delivery robot testing across warehouses, campuses, and industrial sites
Diablo robot specifications
- Net weight
- 22.9 kg
- Maximum travel speed
- 2 m/s
- Maximum standing payload
- 4 kg
- Maximum creeping-mode payload
- 80 kg
- Maximum jump height
- About 8 cm
- Standing-mode dimensions
- 540 × 371 × 491 mm
Start developing with Diablo
Find the user manual, operation videos, SDK documentation, and development resources on the Diablo tutorials and SDK page. Additional open development information is available through the Direct Drive Tech GitHub organization.
Frequently asked questions about Diablo
What is the Diablo robot?
Diablo is a two-wheeled self-balancing robot with articulated legs. It can maintain balance while moving and change its height and posture for different mobility and development tasks.
Can Diablo be used for robotics research?
Yes. Its open SDK and expandable interfaces support experiments in balance control, locomotion, sensor integration, inspection, mapping, and delivery-robot prototyping.

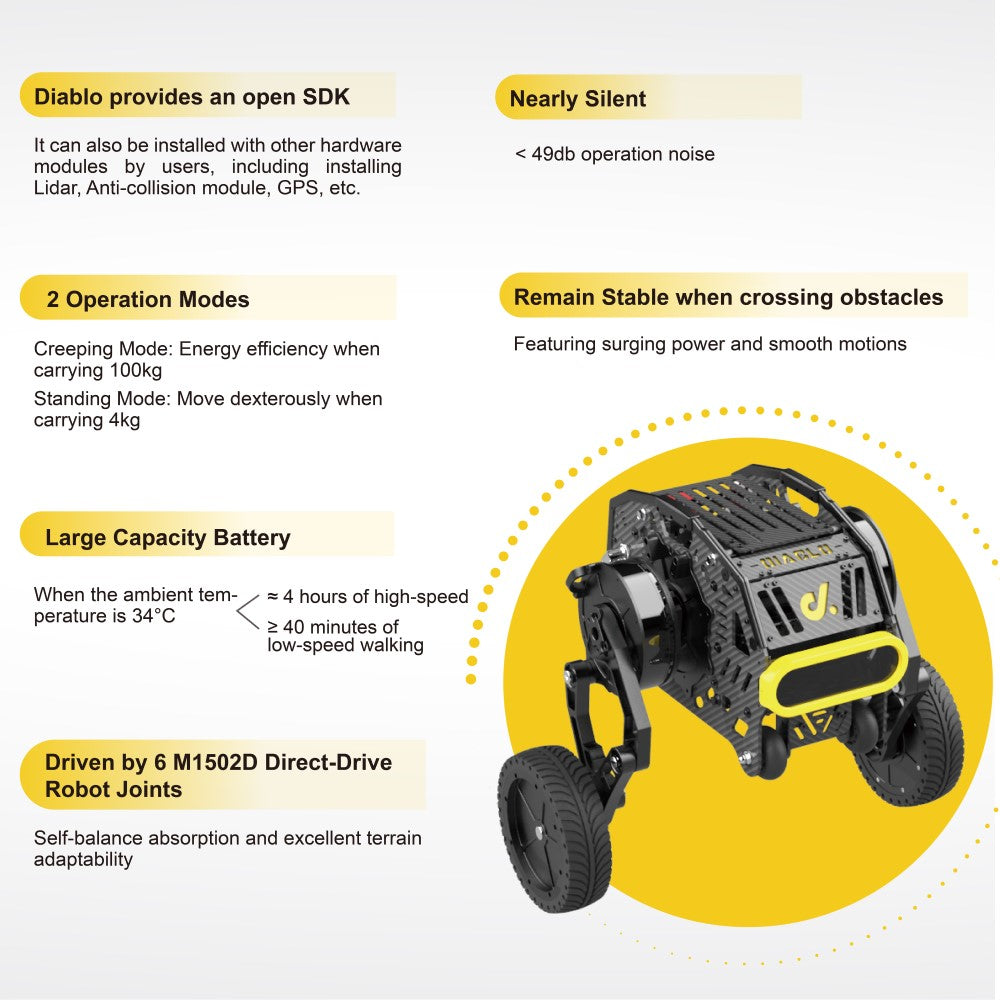

Diablo provides an open SDK
It can also be installed with other hardware modules by users, including installing Lidar, Anti-collision module, GPS, etc.
Driven by 6 M1502D Direct-Drive Robot Joints
Self-balance absorption and excellent terrain adaptability
Nearly Silent
<49db operation noise
Large Capacity Battery
When the ambient temperature is 34°C
<
≈3 hours of high-speed
≥ 40 minutes of low-speed walking
≥ 40 minutes of low-speed walking
2 Operation Modes
Creeping Mode: Energy efficiency when carrying 80kg
Standing Mode: Move dexterously when carrying 4kg
Remain Stable When Crossing Obstacles
Featuring surging power and smooth motions
Handle
Emergency Stop
Motherboard
Front Sensors Space
Auxiliary Wheels
Top Cargo Space
Head Tilting Motor
Leg Crouching Motor
Battery
Four-bar Linkage Leg
Wheel Hub Motor
Raspberry Pi
Programmable &
Super Agile
& Balance
& Balance
Attach & Integrate
Use SDK to
Custom Control
Custom Control

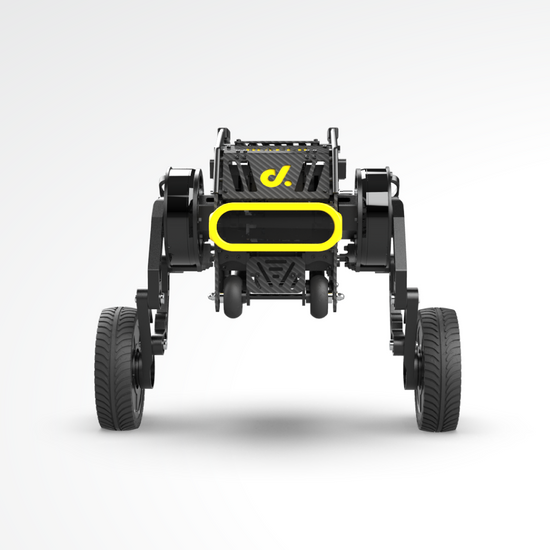

Standing mode

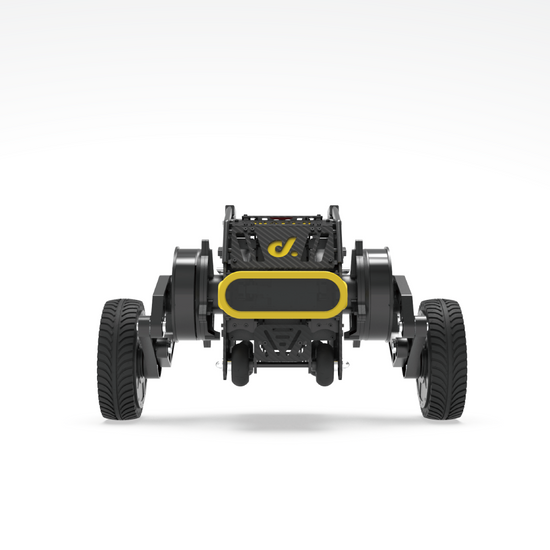

Squatting mode

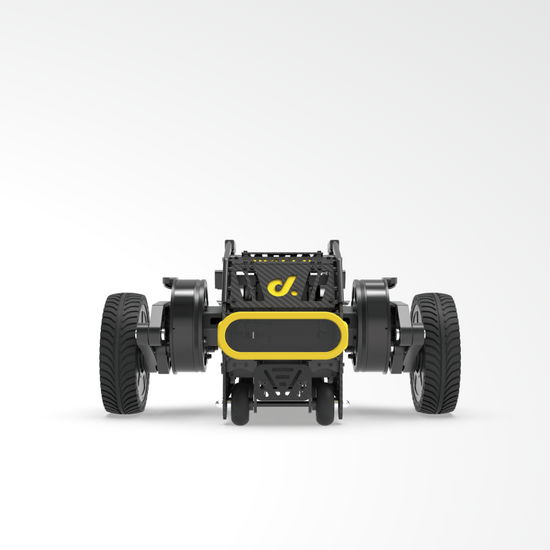

Creeping mode
Net weight
22.9kg
Length, width, and height in standing mode
540×371×491mm
Length, width, and height in
creeping mode
creeping mode
540×371×270mm
Maximum load in standing mode
4kg
Maximum load in creeping mode
80kg
Noise during operation
<49dB
Maximum travel speed
2m/s
Standing time in an upright position
The standing time is ≈3h at an ambient
temperature of 25 °C
temperature of 25 °C
Maximum continuous travel time in
creeping mode
creeping mode
The travel time in creeping mode at
high speed is ≈3h at an ambient temperature of 34°C
high speed is ≈3h at an ambient temperature of 34°C
Standing time in squatting mode
The standing time is ≈15min at an ambient temperature of 25 °C
Maximum continuous travel time in
standing mode
standing mode
The travel time at low speed in standing
mode is =3h at an ambient temperature
of 34°C.
mode is =3h at an ambient temperature
of 34°C.
Jumping height
The jumping height is about 8cm with
no load
no load
Realizable function
Standing load

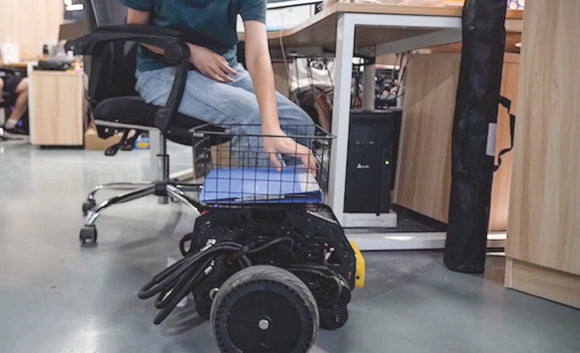

Move heavy stuff

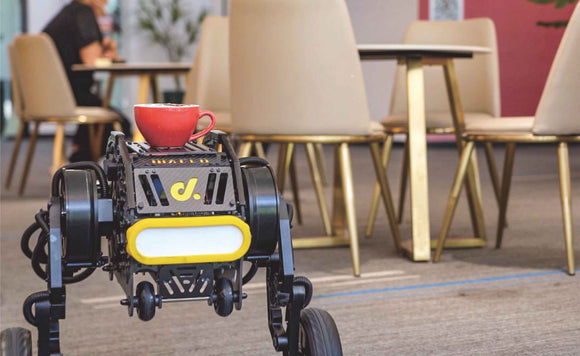

Delivery food
Go and Get

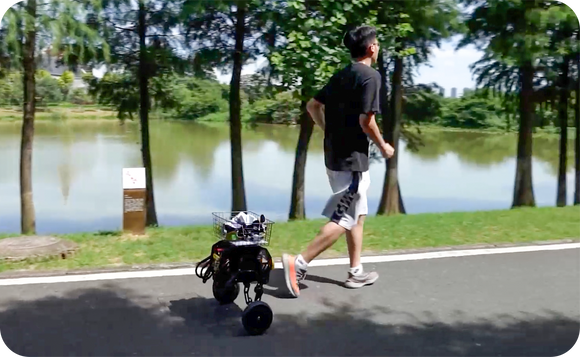

Accompany

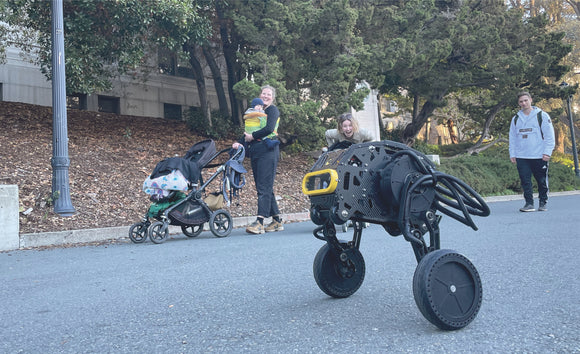

Rough roads
Squat load
