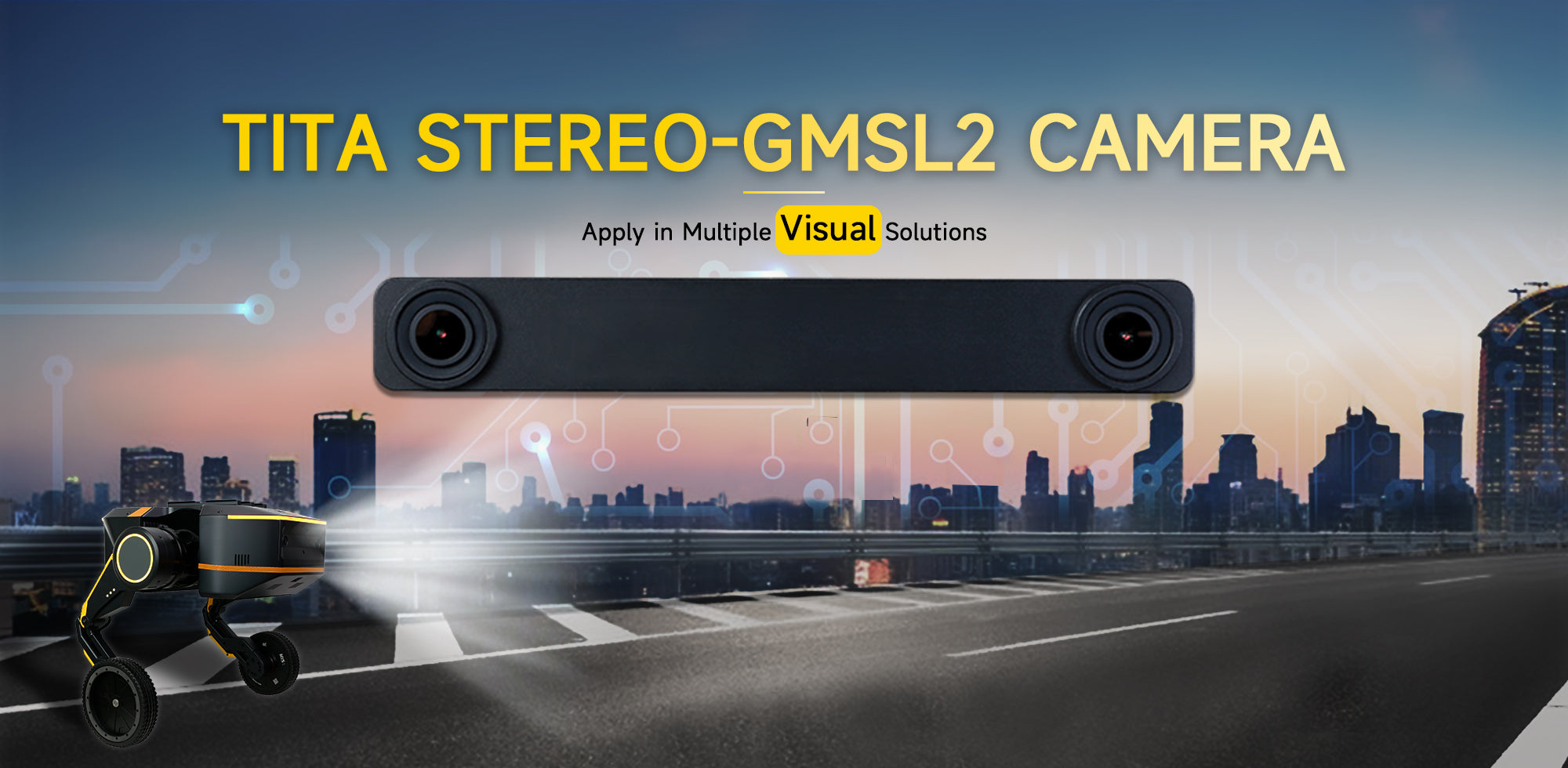

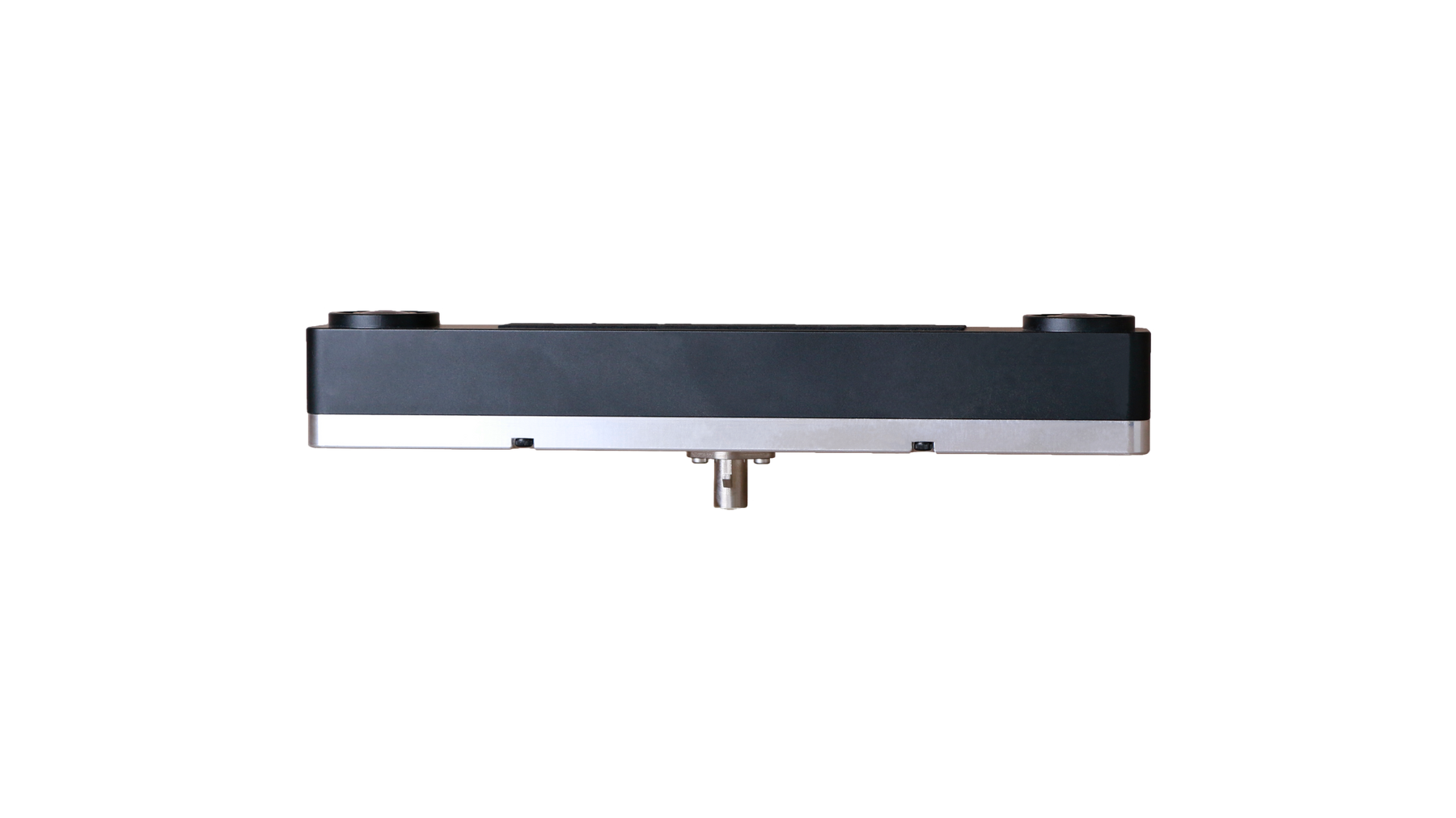

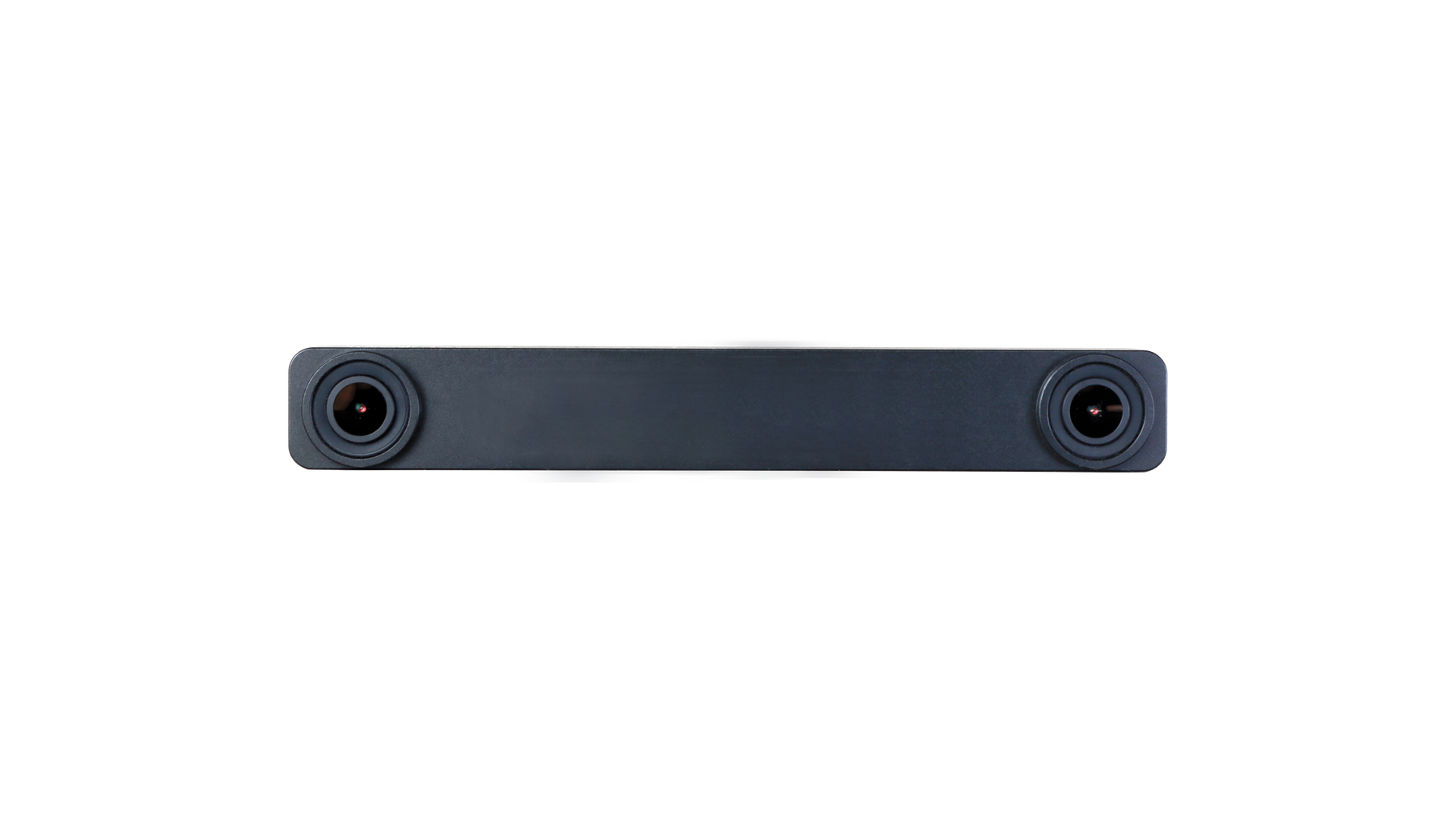

Leopard Imaging LI-AR0234CS-STEREO-GMSL2-30
Quantity:
| ON Semiconductor 2.3MP CMOS Image Sensor AR0234CS | |
| Color Sensor | |
| GMSL2 Serializer | |
| Certification | FCC, CE |
| Recommended Working Distance: | 1.0 ~ 8.0 m |
| Lens: | FOV H 121.5° |
| Active Pixels: | 1920 (H) x 1200 (V) |
| IMU: | Included |
| Frame Rate: | 60 fps @ 1920 × 1200 |
| Optical Format: | 1/2.6″ |
| Pixel Size: | 3.0 x 3.0 μm |
| Power Supply Range: | 9 ~ 19 VDC |
| Part#: | LI-AR0234CS-STEREO-GMSL2-30 |
| USB 3.0 EVA Kit Part#: | LI-USB30-AR0234CS-STEREO-GMSL2-30 |
Bar Code Scanner
Depth Sensing
Gesture Recognition
3D Scanning
Positional Tracking
Iris Scanning
Augmented Reality
Virtual Reality
Biometrics
Machine Vision
Camera Tool Source Code in C#
Capture & Display
Register Access Function
