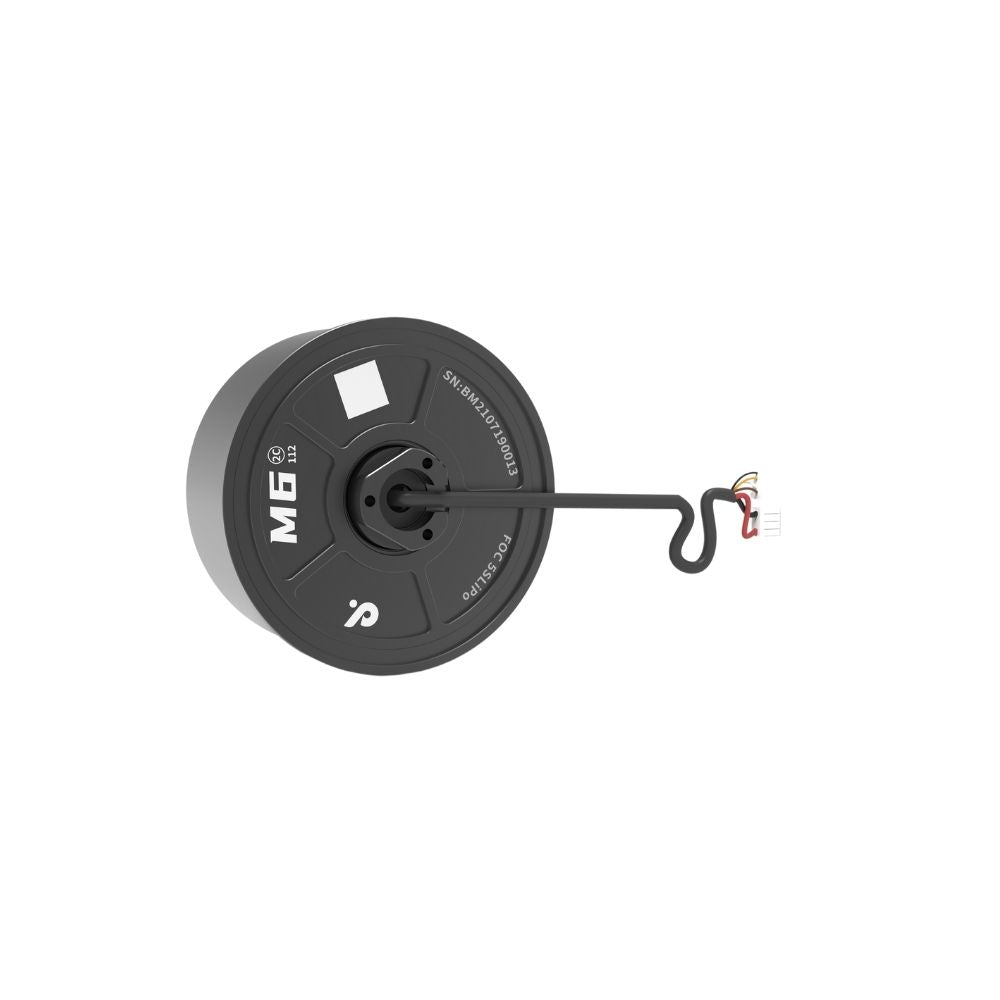

M0602C-112 Drictdrive Motor

Sale price$999.00
Quantity:

Description of M0601C-112 Drictdrive Motor

Feature

1. Motor and driver integrated design, compact structure, high integration.

2. Supports the 485 communication mode.

3. The special structure design allows the temperature sensor to measure the overall temperature of the motor, and the control is more accurate.

4. The position, speed, current, fault code and other information of the motor can be obtained through communication.

5. With hall position detection, overcurrent protection and other functions.

6. Support electric brake.



Test motor parameters with M6

Size
Outer Diameter(mm) 64.7
Length(mm) 35.3
Weight(kg) 0.3
Performance
Unload Velocity(rpm) 315
Unload Current (A) ≤0.25
Rated Velocity(rpm) 200
Rated Torque(Nm) 0.55
Rated Current(A) 1.45
Stall Torque(Nm) 1.1
Stall Current(A) ≤3.5
Rated Voltage(VDC) 18
Voltage range(V) 7.5~28
Characteristics
Torque Constant(Nm/A) 0.37(Measured at rated speed)
Velocity Constant(rpm/V) 17.5
Rotor Inertia(kg/mm^2) 99.6
Torque Density(Nm/kg) 3.67
Mechanical
Allowable Radial Load(N) 100
Allowable Axial Load(N) 50
Operation
Noise Level ≤30dB
Ingress Protection Rating IP54
Ambient Temperature -20~45
Maximum Winding Temp 80°C intelligent temperature protection
Encoder
Encoder Type 12bit
Encoder Resolution 4096
Absolute Position Information ×
Others
Connector Type Power supply terminal: XH2.54*2P
  Signal terminal: (ZH1.5*4P)
