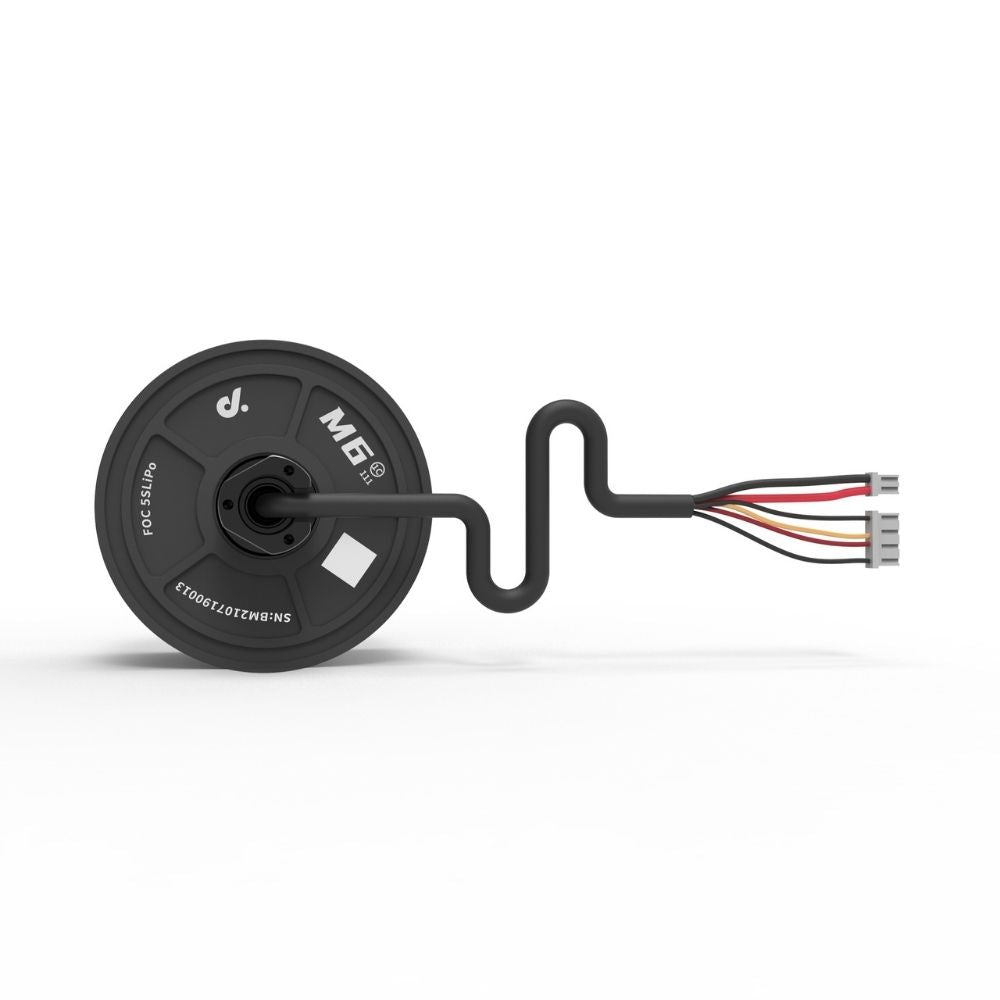

M0601C-111 Directdrive Motor
A high torqued motor utilising direct drive drive technology, borned for precise control and durability.
1.High torque density: 4.13 Nm/kg.
2.Low noise level≤35dB, used in various low-noise scenarios.
3.Flexible switching of various control modes: Current loop, position loop, speed loop can be switched and correspondenced.
4.RS485 communication mode can correspondence real-time data: Point, voltage, current, velocity, temperature, esteem and all data of engine.
5.Provided servo system function: Precise control and timely feedback with a favorable price.
6.Electric brake system upheld.
7.High space utilization: Built-in driver, highly integrated.
8.Customized services are available.
9.High precision (position accuracy), high stability, low energy consumption: Velocity (1rmp-200rmp) with high stability is suitable for machine models.
10.Focus on direct drive technology: No need gearbox.
11.Security protection: Protect the motor when overvoltage, undervoltage, temperature, overcurrent, etc.
12.High protection level (IP54): Dustproof and waterproof.
What are the components that go into calculating the shipping charge?
Shipping costs will vary depending on your location, the weight and volume of the items you've selected for purchase.
Subject to the carrier's final bill, we may charge you for additional shipping costs or refund you when there are remaining shipping fees.
How long does delivery take?
Pre-sale orders : shipped according to the agreed date on the pre-sale product page.
Non-presale orders : 3-7 business days.
What countries do you ship to?
US/UK/JP/EU/AU/CA/RUS.
We cannot deliver to the following areas:
1. Alaska
2. American Samoa
3. Guam
4. Hawaii
5. Marshall Islands
6. Northern Mariana Islands
7. Palau
8. Puerto Rico
9. Rhode Island
10. U.S. Virgin Islands
11. Armed Forces Americas
12. Armed Forces Europe
13. Armed Forces Pacific
Thank you for your understanding.
How will my delivery be shipped?
DHL/UPS as our logistics partner to ship out DRICTDRIVE products. They will choose the carrier that they think works best for our customers.
I ordered more than one item. Will they all be delivered at the same time?
We try to make sure all your items reach you at the same time. Sometimes our products are not always sent together since different shipping options can be used, depending on the product. Once an item has been shipped, you will receive a shipment notification email.
Can I change the delivery address of my package after it has been shipped out?
Unfortunately, we cannot change the shipment once the product has been Shipping Policy
Size | |
Outer Diameter(mm) | 64.7 |
Length(mm) | 40.3 |
Weight(kg) | 0.485 |
Performance | |
Unload Velocity(rpm) | 200 |
Unload Current (A) | ≤0.25 |
Rated Velocity(rpm) | 115 |
Rated Torque(Nm) | 0.96 |
Rated Current(A) | 1.25 |
Stall Torque(Nm) | 2.0 |
Stall Current(A) | ≤2.7 |
Rated Voltage(VDC) | 18 |
Voltage range(V) | 7.5~28 |
Characteristics | |
Torque Constant(Nm/A) | 0.75 (Measured at rated speed) |
Velocity Constant(rpm/V) | 11.1 |
Rotor Inertia(kg/mm^2) | 135.5 |
Torque Density(Nm/kg) | 4.13 |
Mechanical | |
Allowable Radial Load(N) | 120 |
Allowable Axial Load(N) | 60 |
Operation | |
Noise Level(dB) | ≤35 |
Ingress Protection Rating | IP54 |
Ambient Temperature | -20~45 |
Maximum Winding Temp | 80°C intelligent temperature protection |
Encoder | |
Encoder Type | Incremental |
Encoder Resolution | 12 bit |
Absolute Position Information | × |
Others | |
Connector Type | Power supply terminal: XH2.54*2P Signal terminal: (ZH1.5*4P) |
Communication Protocol | RS485 |
