Direct Drive Technology Limited

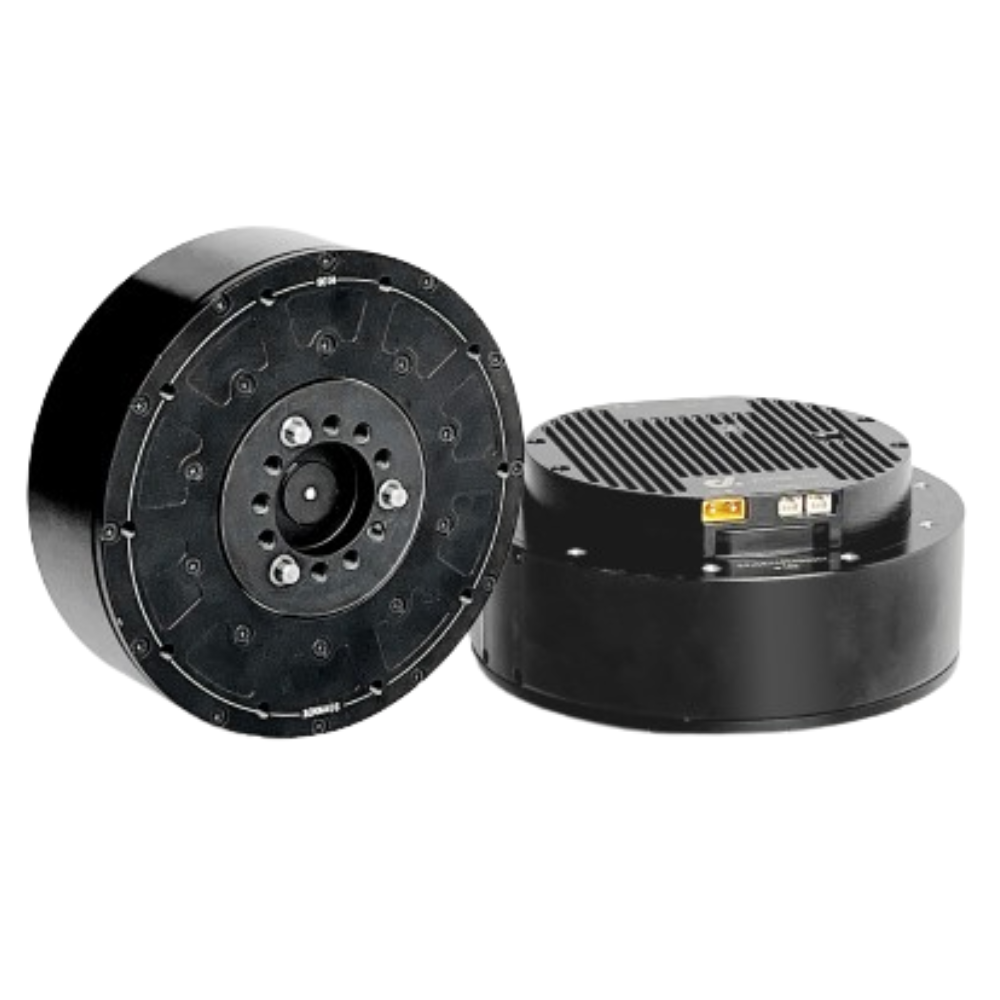

P1010A Motor(On Request)

Sale price$0.00
Sold out
Size
Outer Diameter(mm) 120
Length(mm) 52.7
Weight(kg) 1.4
Performance
Unload Velocity(rpm) 170
Unload Current (A) ≤1.0
Rated Velocity(rpm) 20
Rated Torque(Nm) 25
Rated Current(A) 2
Stall Torque(Nm) 85(Overload torque)
Stall Current(A) 35(Overload torque)
Rated Voltage(VDC) 48
Voltage range(V) 36~60
Characteristics
Torque Constant(Nm/A) 2.5
Velocity Constant(rpm/V) 3.5
Rotor Inertia(kg/mm^2) -
Torque Density(Nm/kg) 64
Mechanical
Allowable Radial Load(N) 1500
Allowable Axial Load(N) 300
Operation
Noise Level(dB) ≤70
Ingress Protection Rating IP2X
Ambient Temperature -20~+50℃
Maximum Winding Temp 120°C
Encoder
Encoder Type Absolute Type
Encoder Resolution 15 bit
Absolute Position Information
Others
Connector Type CAN Bus
Communication Protocol

Power cable:XT30PW-M

Signal cable:GH1.25*2PWBPZ
