Direct Drive Technology Limited

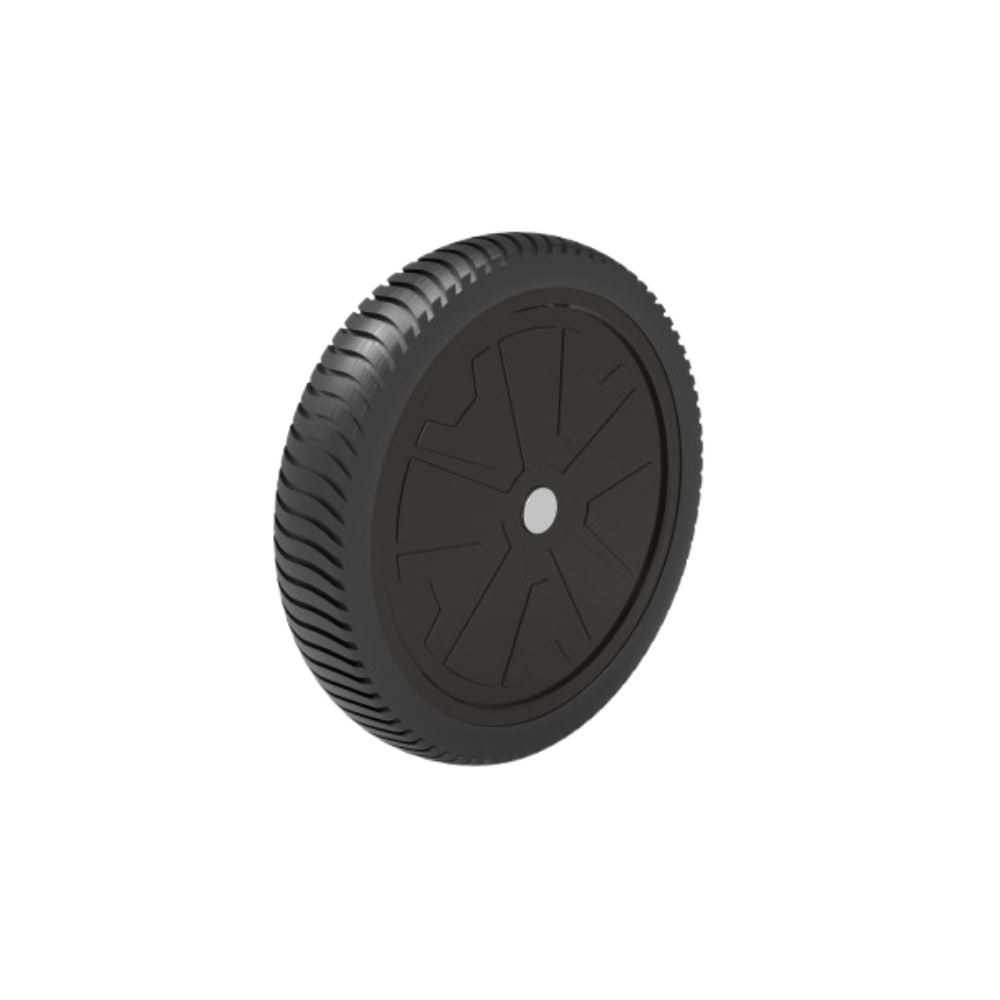

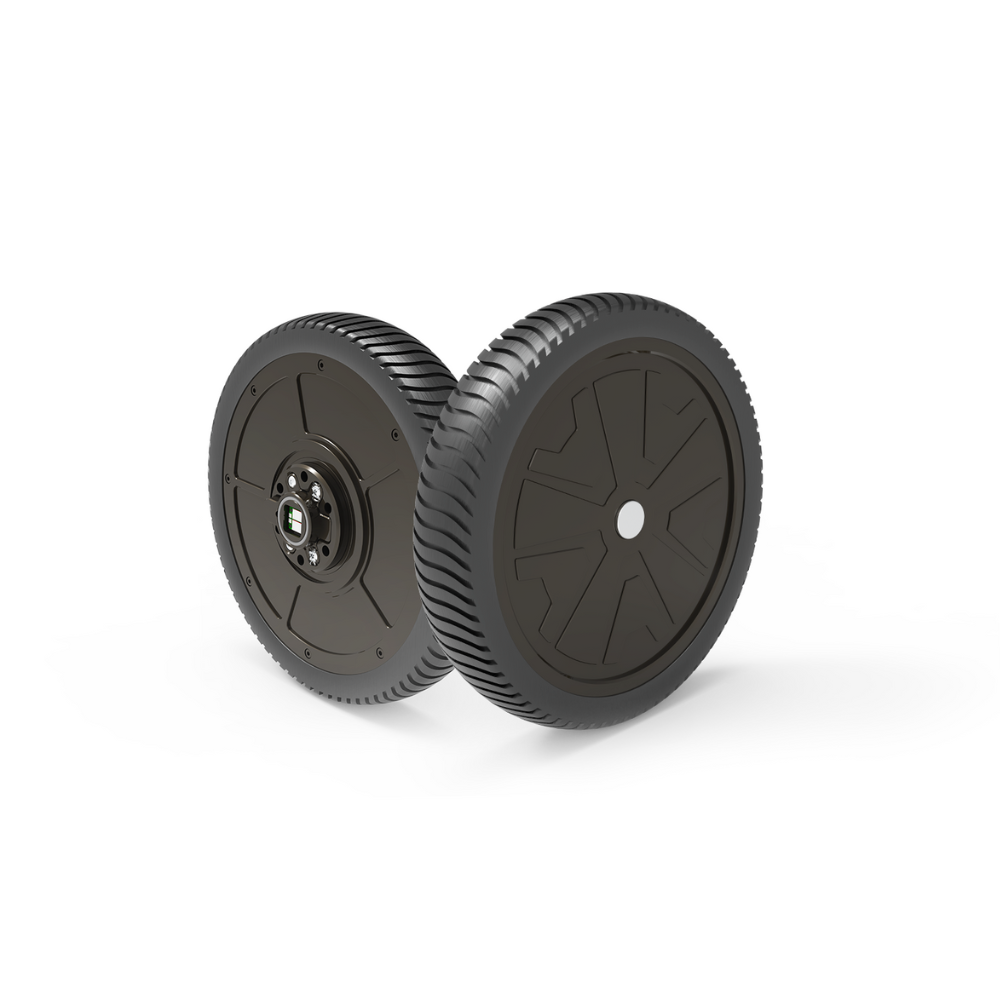

M1505A-111 Directdrive Motor
A high torque motor utilising direct drive drive technology.
Built for precise control and durability, with flexible controls, electronic brake all without the need for a gearbox.
1.High torque density: 8Nm/kg.
2.Low noise level ≤ 45dB.
3.High maxmium torque: 40Nm
4.Flexible switching of various control modes.
5.CAN Bus communication compatible.
6.Electric brake system upheld.
7.Customized services are available.
8.Loaded velocity: 1rmp-210rmp with high stability.
9.Rated Voltage: 24VDC
10.Built-in driver, highly integrated: No need gearbox.
11.Security protection.
12.High protection level: IP66.
What are the components that go into calculating the shipping charge?
Shipping costs will vary depending on your location, the weight and volume of the items you've selected for purchase.
Subject to the carrier's final bill, we may charge you for additional shipping costs or refund you when there are remaining shipping fees.
How long does delivery take?
Pre-sale orders : shipped according to the agreed date on the pre-sale product page.
Non-presale orders : 3-7 business days.
What countries do you ship to?
US/UK/JP/EU/AU/CA/RUS.
We cannot deliver to the following areas:
1. Alaska
2. American Samoa
3. Guam
4. Hawaii
5. Marshall Islands
6. Northern Mariana Islands
7. Palau
8. Puerto Rico
9. Rhode Island
10. U.S. Virgin Islands
11. Armed Forces Americas
12. Armed Forces Europe
13. Armed Forces Pacific
Thank you for your understanding.
How will my delivery be shipped?
DHL/UPS as our logistics partner to ship out DRICTDRIVE products. They will choose the carrier that they think works best for our customers.
I ordered more than one item. Will they all be delivered at the same time?
We try to make sure all your items reach you at the same time. Sometimes our products are not always sent together since different shipping options can be used, depending on the product. Once an item has been shipped, you will receive a shipment notification email.
Can I change the delivery address of my package after it has been shipped out?
Unfortunately, we cannot change the shipment once the product has been Shipping Policy
| Size | |
| Outer Diameter（mm） | 180 |
| Length（mm） | 43.8 |
| Weight（kg） | 1.54 |
| Performance | |
| Unload Velocity(rpm) | 500 |
| Unload Current (A) | ≤0.6 |
| Rated Velocity(rpm) | 110 |
| Rated Torque(Nm) | 3 |
| Rated Current(A) | 1.5 |
| Stall Torque(Nm) | 9.5 |
| Stall Current(A) | ≤30 |
| Rated Voltage(VDC) | 48 |
| Voltage range(V) | 18~60 |
| Characteristics | |
| Torque Constant(Nm/A) | 0.83 |
| Velocity Constant(rpm/V) | 10 |
| Rotor Inertia(kg/mm^2) | / |
| Torque Density(Nm/kg) | 6 |
| Mechanical | |
| Allowable Radial Load(N) | 1000 |
| Allowable Axial Load(N) | 150 |
| Operation | |
| Noise Level(dB) | ≤65 |
| Ingress Protection Rating | IP65 |
| Ambient Temperature | -20℃~+50℃ |
| Maximum Winding Temp | 110℃ |
| Encoder | |
| Encoder Type | Absolute Type |
| Encoder Resolution | 15bit |
| Absolute Position Information | ✔ |
| Others | |
| Connector Type | CAN Bus |
| Communication Protocol | / |
